Description

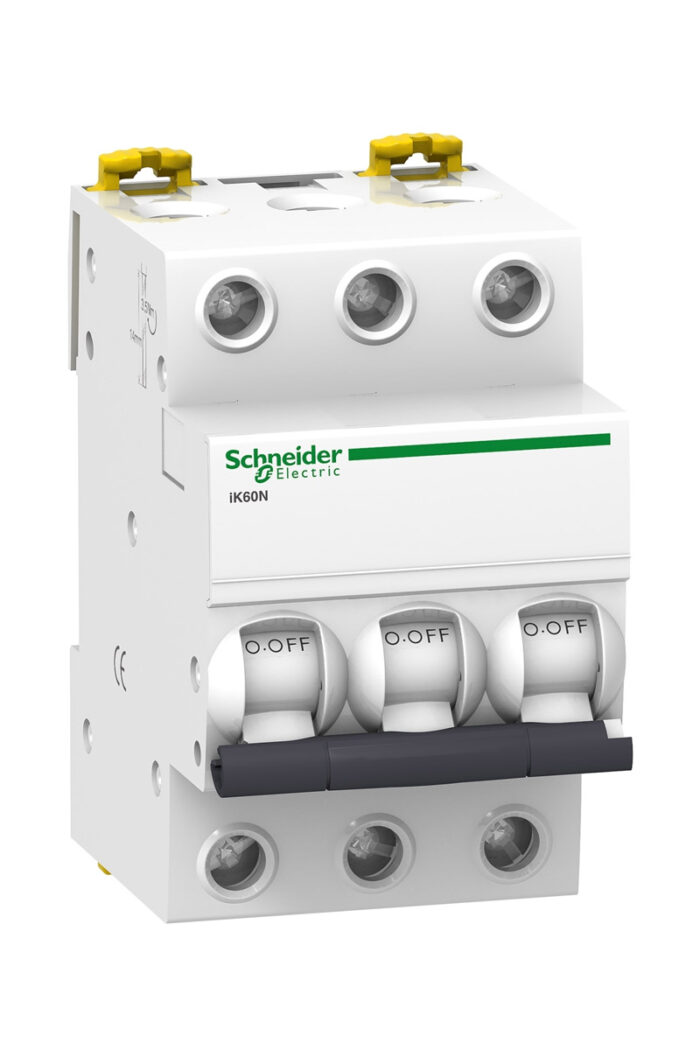

Schneider Automatic Fuse Product Features Device application: Distribution Series: Acti 9 Product name: Acti9 iK60 Product or component type: Miniature circuit breaker Product group: IK60N Pole definition: 3P Number of protected poles: 3 [In] nominal current: 63 A at 30 ?C Network type: AC Trip unit technology: Thermal Magnetic Slope code: C Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 Insulation compliance: Yes conforming to EN /IEC 60898-1 Standards: EN/IEC 60898-1 Supplementary Features Mains frequency: 50/60 Hz Magnetic trip limit: 5…10 x In [Ics] nominal service breaking capacity: 6000 A 100 % conforming to EN/IEC 60898-1 – 400 V AC 50/60 Hz Limitation class : 3 conforming to EN/IEC 60898-1 [Ui] nominal insulation voltage : 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 [Uimp] nominal impulse withstand voltage: 4 kV conforming to EN/IEC 60898-1 Contact position indicator: None Control type: Toggle On-device signaling: ON/OFF indicator Mounting Type: Pluggable Mounting support: DIN rail 9 mm screw pitch: 6 Height: 85 mm Width : 54 mm Depth : 78.5 mm Product weight : 300 g Color : White Mechanical durability : 20000 cycles Electrical durability : 10000 cycles Locking options description : Locking device Connections – terminals : Tunnel type terminal (top or bottom) 1?35 mm? hard Tunnel type terminal (top or bottom) 1?25 mm? flexible Wire stripping length: Top or bottom connection for 14 mm Tightening torque: 3.5 Nm top or bottom Earth leakage protection: None Ambient Conditions IP degree of protection: IP20 conforming to IEC 60529 Pollution degree: 2 conforming to EN/IEC 60898-1 Overvoltage category: II Nominal operating ambient temperature: -25?60 ?C Storage ambient conditions: -40?85 ?C
